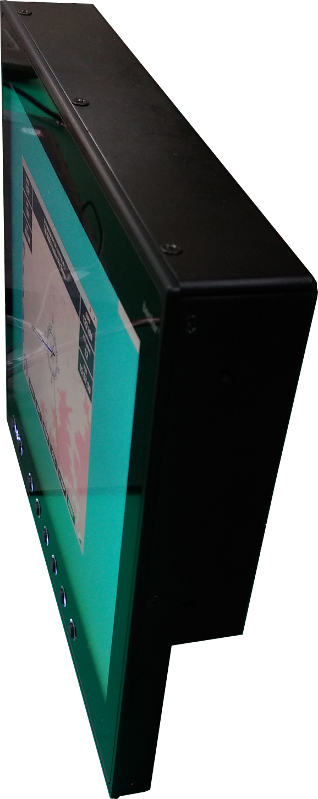

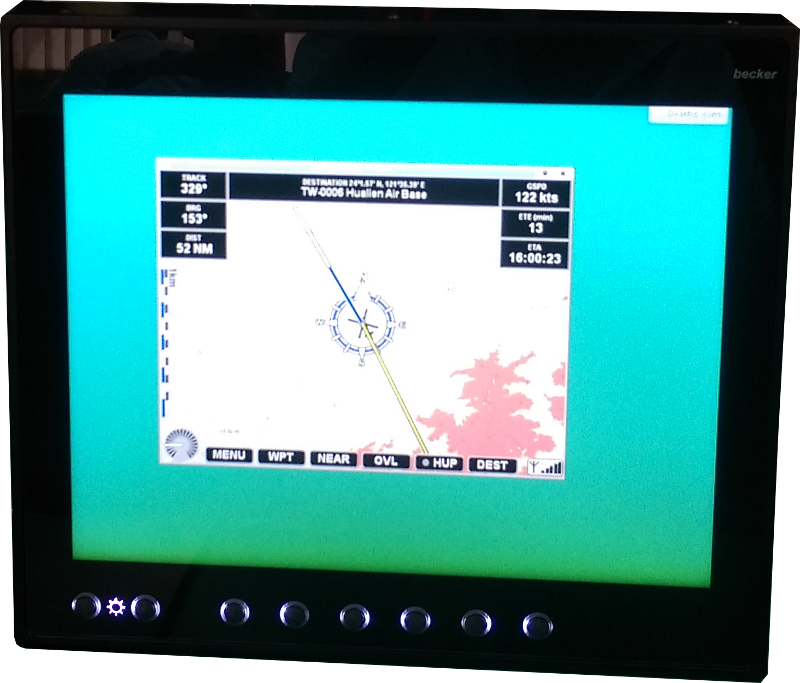

AMT104 Avionics Grade 10.4" Touch Monitor


10.4" high brightness XGA display with multi-touch for -45°C to +70°C
TSO-C113 compliant


Technical Data

  • Dimensions: 213*250*40mm (full installation envelop)
  • Weight: less than 1.4kg
  • HMI:
    • Capacitive multi-touch
    • 2 dimm buttons
    • 6 function buttons, all backlit
  • Interface VGA analogue, RS232, USB
  • Power: 28V, 18W (up to 45W with heater running)
  • Temperature Range: -45°C to +70°C, operating
  • Tested to DO160G
  • Compliant to TSO C113

Display

  • 210*157mm, 10.4 inch diag
  • 1024*768 pixel (XGA)
  • 262.144 colors (3*6bit RGB)
  • Viewing Angle: 80° all directions
  • Brightness: > 700 cd/m²
  • Contrast: 800:1
  • Dimming 1000:1
