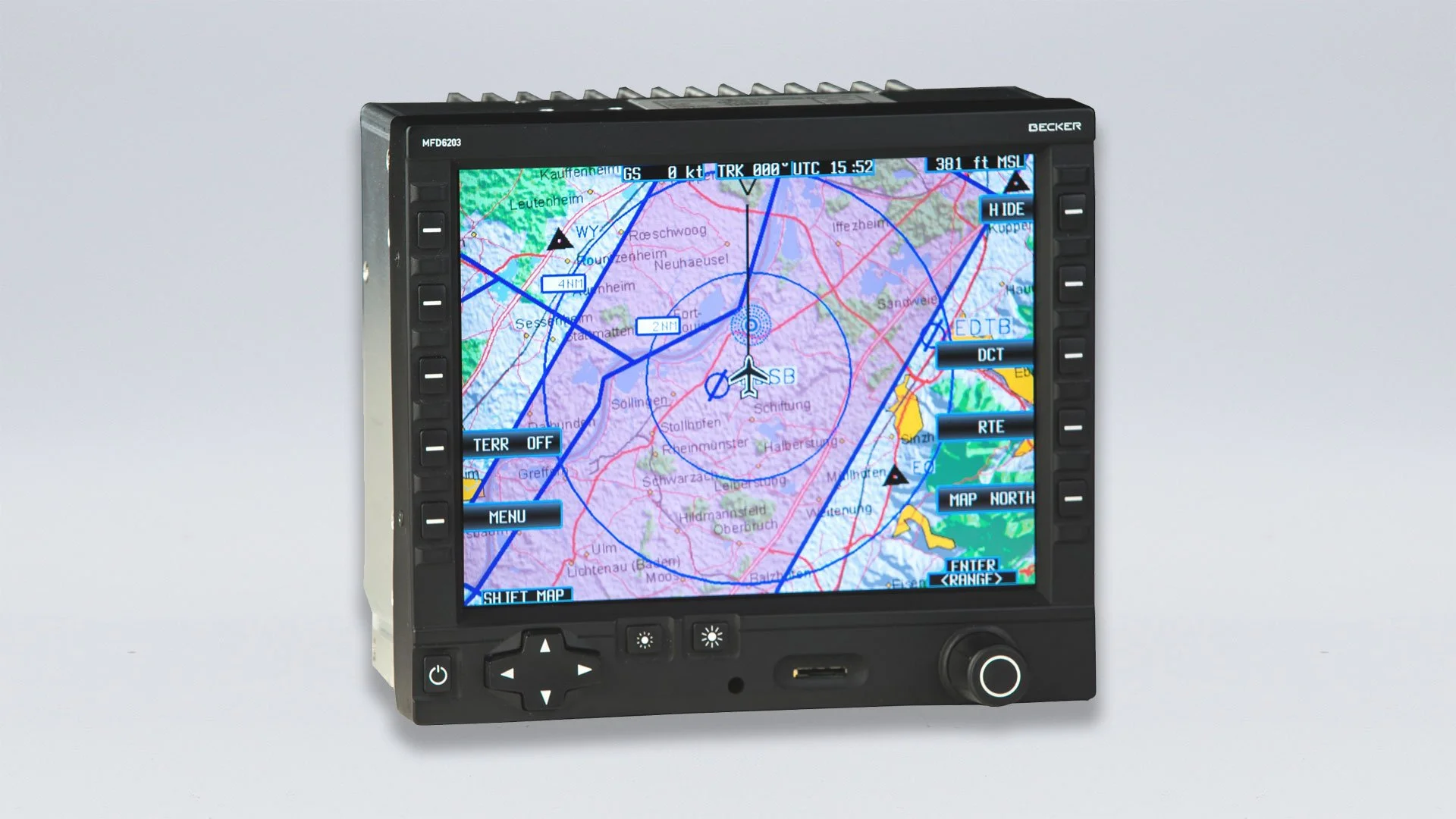

AirScout-2D Multi-Function Display (MFD6203)

The AirScout-2D Multi Function Display is an airborne navigation system for fixed-wing aircraft consisting of 2D-Pilot Navigational Software running on the MFD6203 Display for VFR operations.

The AirScout-2D on Multi Function Display (MFD6203) contains 2D-Pilot software, Jeppesen® VFR Navigation Database, Maps and Terrain Data for Europe and gives the system a powerful architecture for your VFR situational awareness. Flight plans can be input very easily through a user friendly and intuitive HMI. Flight plans can also be easily transferred from personal computer via microSD card.

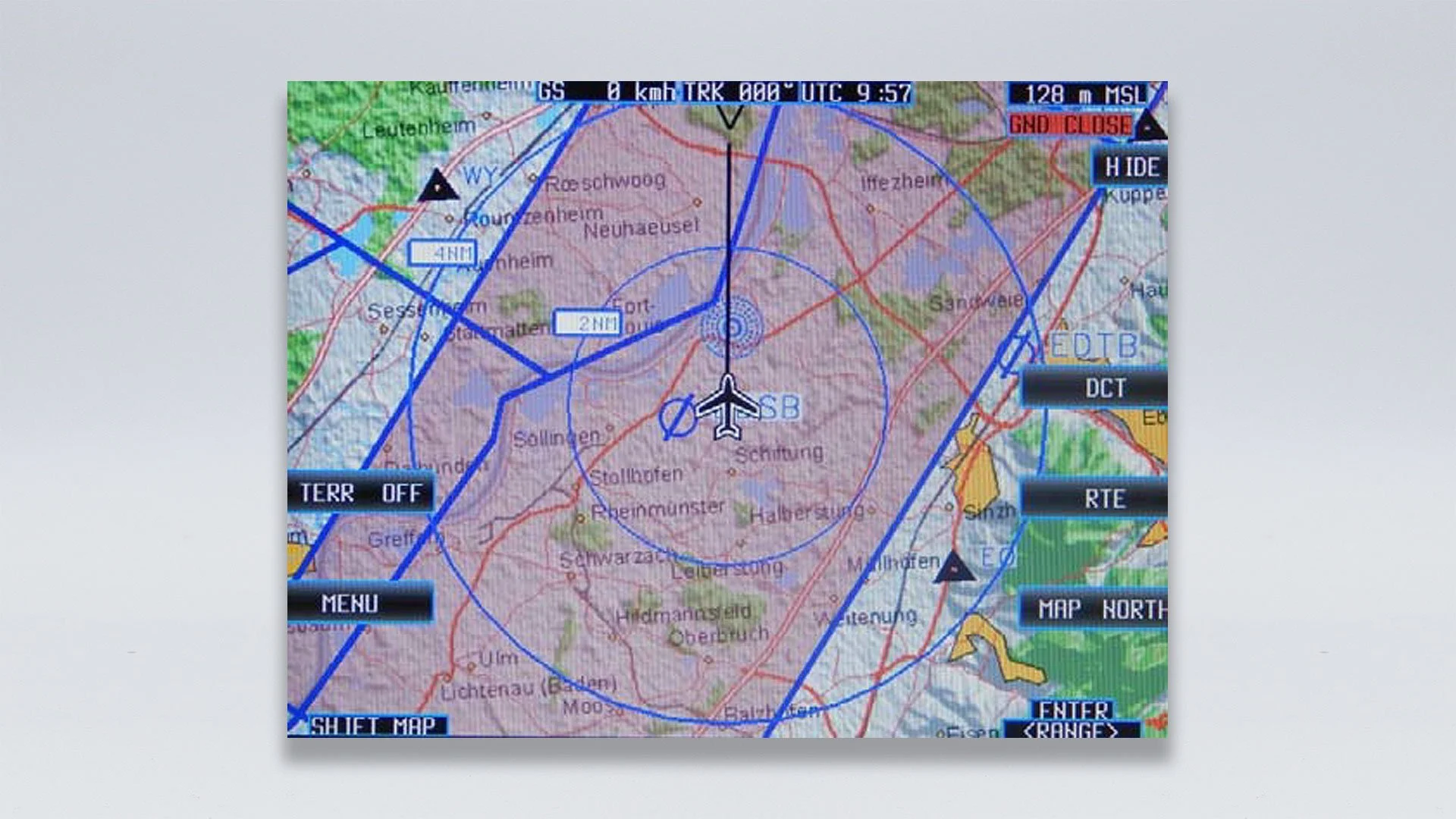

The state-of-the-art multi function moving map display in the new 160mm design with a crystal clear 6.5inch display providing excellent sunlight readability.  Based on European database and European map, north and track mode with different overlays are possible to view. The MFD6203 Hardware is a rugged computer with built-in GPS receiver, qualified in accordance with RTCA DO-160G environ-mental conditions for safe installation on the instrument panel.

The MFD6203-(000) kit contains:

  • MFD6203-(000)

  • 8 GB Micro SD card,

  • Mounting tray

  • Navigation software and databases.

  • Jeppesen ® VFR Navigation Database Europe.

    VFR chart avionTek Europe.

    Terrain database avionTek Europe.

    Direct to function.

    Route planning or route upload by Micro SD card (gpx file support).

    Sunlight readable 6.5” colour TFT-LCD with LED backlight, which can be dimmed for night operation.

    Several information fields are displayed to assist the pilot in situational awareness.

  • Dimensions: 136 × 158 × 90mm (without mounting tray & knobs)

    Weight MFD6203: ≤ 1430 g

    Weight mounting tray: ≤ 250 g

    Supply voltage: 9 V to 32.5 V DC

    Current consumption, typical with max brightness: 1.6 A at 14 V, 0.8 A at 28 V

    Operating Temperature: -20°C to +55°C (short-time +70°C)

    Storage Temperature: -30°C to +70°C

    Operating altitude: ≤ 15000 ft

    Interfaces: MicroSD (HS-SD or HC-SD), D-Sub 43W2 male (power, GPS, & external dimming inputs for 14V & 28V)

    Qualification: DO-160G Env. Cat [(A4)X(A4)XX]BABSXXXXXX Z[BXX]AB[ACE][WW]XXAX

  • Active screen size: 6.5“, diagonal

    Screen resolution: 640 x 480 VGA

    Support colours: 16.2M / 262K colours

    Surface treatments: Glare, AR, Anti-Reflective
